• 2 LCD Monitors In The Front
• Air Filtration
• Compass
• Driver Information Center
• Fade-To-Off Interior Lighting
• Fixed Antenna
• FordPass Connect 4G Mobile Hotspot Internet Access
• Front And Rear Map Lights
• Front Cupholder
• Locking Glove Box
• Outside Temp Gauge
• Rear Cupholder
• Securilock Anti-Theft Ignition (pats) Immobilizer
• Smart Device Integration
• Trip Computer
• Urethane Gear Shifter Material
• Wireless Phone Connectivity

• 4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Brake Assist and Hill Hold Control
• 50-State Emissions System
• Auto Locking Hubs
• Electronic Transfer Case
• Firm Suspension
• Front Anti-Roll Bar
• Front Suspension w/Coil Springs
• GVWR: 10,000 lb Payload Package
• HD Gas-Pressurized Shock Absorbers
• Part-Time Four-Wheel Drive
• Solid Axle Rear Suspension w/Leaf Springs
• Trailer Wiring Harness

• ABS And Driveline Traction Control
• AdvanceTrac w/Roll Stability Control Electronic Stability Control (ESC) And Roll Stability Control (RSC)
• Back-Up Camera
• Dual Stage Driver And Passenger Front Airbags
• Dual Stage Driver And Passenger Seat-Mounted Side Airbags
• Emergency Sos Capability
• Mykey System -inc: Top Speed Limiter, Audio Volume Limiter, Early Low Fuel Warning, Programmable Sound Chimes and Beltminder w/Audio Mute
• Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point and Height Adjusters
• Rear Child Safety Locks
• Safety Canopy System Curtain 1st And 2nd Row Airbags
• Side Impact Beams
• Tire Specific Low Tire Pressure Warning

ENGINE: 6.7L 4V OHV POWER STROKE V8 TURBO DIESEL B20

• manual push-button engine-exhaust braking and intelligent oil-life monitor
• 240 Amp Alternator
• 34 Gallon Fuel Tank
• 3.31 Axle Ratio
• Dual 78-AH 750 CCA Batteries

• 4-Wheel Disc Brakes
• 8 Cylinder Engine
• A/C
• ABS
• Adjustable Steering Wheel
• AM/FM Stereo
• Automatic Headlights
• Auxiliary Audio Input
• Back-Up Camera
• Bluetooth® Connection
• Brake Assist
• Child Safety Locks
• Conventional Spare Tire
• Daytime Running Lights
• Diesel Fuel
• Driver Adjustable Lumbar
• Driver Air Bag
• Driver Restriction Features
• Four Wheel Drive
• Front Head Air Bag
• Front Side Air Bag
• Immobilizer
• Intermittent Wipers
• MP3 Capability
• Pass-Through Rear Seat
• Passenger Air Bag
• Passenger Vanity Mirror
• Power Steering
• Rear Bench Seat
• Rear Head Air Bag
• Requires Subscription
• Smart Device Integration
• Stability Control
• Steering Wheel Audio Controls
• Telematics
• Tire Pressure Monitor
• Tow Hitch
• Tow Hooks
• Traction Control
• Trip Computer
• Turbocharged
• Variable Speed Intermittent Wipers
• WiFi Hotspot

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 240 & 0
• Maximum Alternator Capacity (amps): 200
• Weight Information
• Base Curb Weight (lbs): 6464
• Base Curb Weight (lbs): 7262
• Base Curb Weight (lbs): 6462
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 6340
• Curb Weight - Front (lbs): 3810
• Curb Weight - Rear (lbs): 2652
• Gross Vehicle Weight Rating Cap (lbs): 10000
• Gross Combined Wt Rating (lbs): 19500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 12500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1250
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 12500
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3125
• Maximum Trailering Capacity (lbs): 12500
• Suspension
• Suspension Type - Front: Other
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6340
• Axle Type - Front: Non-Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.3
• Rear Brake Rotor Diam x Thickness (in): 14.3
• Tires
• Front Tire Order Code: TCW
• Rear Tire Order Code: TCW
• Front Tire Size: LT275/65SR20
• Rear Tire Size: LT275/65SR20
• Spare Tire Size: Full-Size
• Front Tire Capacity (lbs): 7180
• Rear Tire Capacity (lbs): 7180
• Revolutions/Mile @ 45 mph - Front: 596
• Revolutions/Mile @ 45 mph - Rear: 596
• Wheels
• Front Wheel Size (in): 20 X 8
• Rear Wheel Size (in): 20 X 8
• Spare Wheel Size (in): Full-Size
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Re-Circulating Ball
• Turning Diameter - Curb to Curb (ft): 53
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34
• Exterior Dimensions
• Wheelbase (in): 160
• Length, Overall (in): 250
• Width, Max w/o mirrors (in): 80
• Height, Overall (in): 81.5
• Overhang, Front (in): 38.2
• Cab to Axle (in): 39.9
• Ground to Top of Load Floor (in): 37.2
• Ground Clearance, Front (in): 8.5
• Ground Clearance, Rear (in): 8.5
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 81.9
• Cargo Box Width @ Top, Rear (in): 66.9
• Cargo Box Width @ Floor (in): 66.9
• Cargo Box Width @ Wheelhousings (in): 50.5
• Cargo Box (Area) Height (in): 21.1
• Tailgate Width (in): 60.5
• Cargo Volume (ft³): 65.4
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 40.8
• Front Leg Room (in): 43.9
• Front Shoulder Room (in): 66.7
• Front Hip Room (in): 62.5
• Second Head Room (in): 40.4
• Second Leg Room (in): 43.6
• Second Shoulder Room (in): 65.9
• Second Hip Room (in): 64.7
• Summary

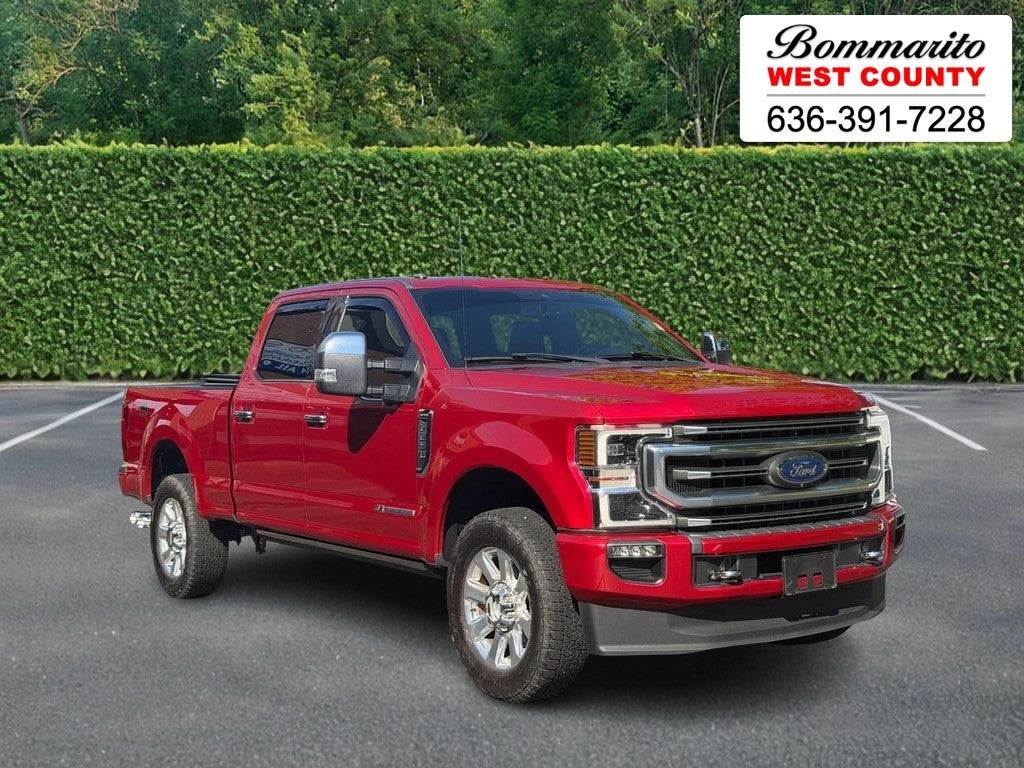

• Vehicle Name: Ford Super Duty F-250 SRW
• Body Style: SD Crew Cab
• Body Code: T
